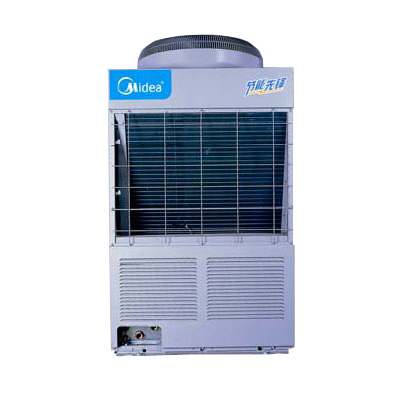

Type RSJ-380/S-820-C
The rated heating heat (kw) 38.5
Rated power (kw) 9
COP 4
Rated current (A) 15
Hot water yield (m3/h) 1
The maximum power (kw) 12
The maximum current (A) 19
Specification of power supply 380V 50/60Hz
Refrigerant R22
Refrigerant filling quantity of 5200g
Water temperature 56 degrees (48-60 degrees adjustable)
The water inlet pipe diameter (mm) DN25 (male)
Outlet pipe diameter (mm) DN32 (male)
Circulating water pipe (mm) with DN32 (male)
The highest pressure water system (MPa) 1
The outdoor fan power (W) * 600 * 1
Outdoor fan wind out of the wind
Unit: mm x mm wide high deep mm x 998 x 1770 x 890
Unit weight (kg) 290
The operation noise of dB (A) 60
Notes: (1) the test conditions of the data: the outdoor temperature of 20 degrees, the water temperature of 18 degrees, the water temperature of 55 degrees
(2) and size change because of product improvement, the nameplate parameters prevail
