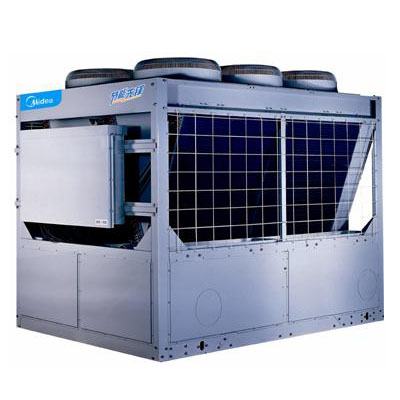

Type RSJ-2400MS-820
The rated heating heat (kw) 178
Water heating power (kw) 58
The hot water system rated current (A) 116
Air volume (m3/h) 78000
Chiller power (kw) 62
Cooling water quota current (A) 120
Direct thermal circulation water flow of 41.6
Specification of power supply 380V 50/60Hz
Refrigerant R22
Refrigerant filling quantity of 2*4.5kg
The water inlet pipe diameter (mm) DN133 (male)
Outlet pipe diameter (mm) DN133 (male)
The highest pressure water system (MPa) 1
Outdoor fan wind out of the wind
Unit: mm x mm wide high deep mm x 3200 x 1820 x 2010
Unit weight (kg) 2720
The operation noise of dB (A) 70
Notes: (1) the test conditions of the data: the outdoor temperature is 20 degrees, the initial water temperature of 15 degrees, the termination of the water temperature of 55 degrees;
(2) if the product improvement and the size change, the nameplate parameters prevail.
