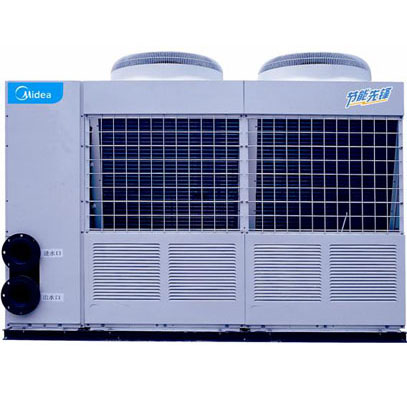

Type RSJ-450/MS-820 RSJ-900/MS-820 RSJ-1800/MS-820
The rated heating capacity (kw) 4590180
Water heating power (kw) 10.9 21.8 43.9
The rated heating capacity (m3/h 3.9) 0.972
Air volume (m3/h) 120002400048000
Refrigerating capacity (kw) 3065142
The heat capacity (kw) 3270152
Direct thermal circulation water flow of 7.81631
Specification of power supply 380V 50/60Hz
Refrigerant R22
The highest pressure water system (MPa) 1
Outdoor fan wind out of the wind
Refrigerant filling quantity of 2*4.0kg 4*4.0kg 8*4.0kg
The water inlet pipe diameter (mm) of 133mm 133mm DN65 (flange)
Outlet pipe diameter (mm) of 133mm 133mm DN65 (flange)
Unit: mm x mm wide high deep mm x 151418208502492 x 1820 x 850220021801700
Unit weight (kg) 4407001480
The operation noise of dB (A) 606268
Note:
(1) the above condition monitoring test data: the outdoor temperature is 20 degrees Celsius, the initial water temperature of 15 degrees Celsius, the termination of water temperature 55 degrees celsius;
(2) the scope of application: temperature of -10-43 degrees celsius;
(3) if the product improvement and the size change, the nameplate parameters prevail.
