Energy storage water source heat pump system is the direct use of groundwater water source heat pump central air-conditioning system with buried pipe water central air conditioning system in the middle of the products. Due to the buried pipe water source heat pump central air-conditioning system, covers an area of large, the wide area larger buildings is difficult to achieve. Using water central air conditioning system demand of groundwater is bigger, sometimes into the groundwater system with temperature fall only 2 y after discharge, even into the sail directly discharge flow to back when weaving Wells, the groundwater heat energy utilization rate is low, the groundwater is undoubtedly a great waste of resources, therefore, no 'L points sufficient construction of groundwater, the storage water source heat pump system is more practical. Because of the heat load of the winter construction are changes over time, the heat load hours to store heat energy, the use of heating load is big, can alleviate the building thermal load big, the contradiction of insufficient of groundwater.

Energy storage water source heat pump system is not complicated, the mode of the system and the buried pipe water source heat pump system is exactly the same. Just supposed to be buried in the ground heat exchange tube mounted according to certain rules in the pool, the ethylene glycol solution tube through the tube wall and the soil heat exchanger to heat exchange with the water in the pool. Due to a large rise in direct contact with the water in thermal efficiency, reduced the number of buried pipe.

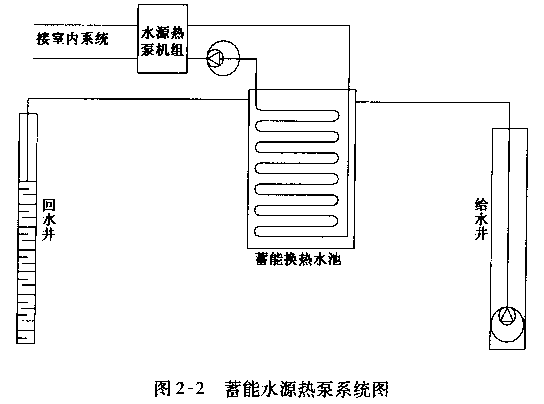

Figure 2-2 for energy storage water source heat pump system diagram. Water temperature in winter, the energy storage pools set to 10 liao (the values according to specific circumstances), when the temperature inside the storage pool below 10 clock, submersible electric pump in the sink water to increase the temperature inside the tank, which can significantly reduce the demand for groundwater. Groundwater for large heat load in the system can not meet the needs of heating system, can reduce the temperature of pool to oY, even

Can make some water ice, in order to solve the problem of shortage of groundwater, guarantee the system at any time can provide enough heat to the building.

In the summer, the temperature within the storage pools set to 35 y (this value according to the concrete circumstances), when the temperature higher than 35 remit in energy storage pools, submersible electric pump in the sink to reduce the temperature in the pool of water, can also sharply reduce the demand of groundwater.

Statement - point, all parts of the book system juice to calculate the density of water as a 1 cangue, Michael Jackson, the specific heat of water is 1 kcay (k8 Y) [4.1868 U/(k8 Y) 1.
